R037540010

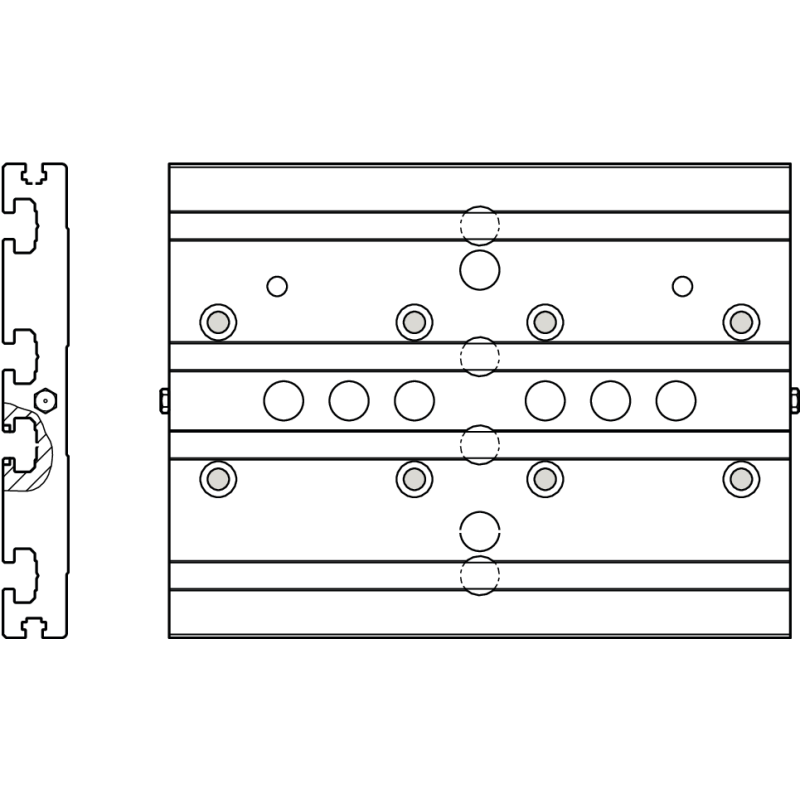

CKK 15-110 L BG

R037540010
  • Dostupnost: na dotaz
  • Váha: 0.57 KG
  • Číslo dílu: R037540010
  • Vyrobce: Bosch Rexroth

Cena:

remove add

Minimální množství pro objednání tohoto produktu je 0.

R037540010
Fyzická velikost a hmotnost
Net weight 0.572 kg
Length of the carriage Lca 155 mm
Další vlastnosti
Mechanical accessories for linear axes Connection plates
Nominal size 110
Lubrication type LCF, LCO
Dimension A (profiled rail systems) 110 mm
Dimension C 16
Dimension D 8.5 mm
Dimension D1 20 mm
Dimension D2 20 mm
Dimension E H7 9 mm
Dimension E H7 thread depth 2.1 mm
Dimension E H7 thread depth (text) deep
Dimension E H7 with thread depth 9 mm ‒ 2.1 mm deep
Dimension E2 10 mm
Dimension E2 tolerance ± 0.01
Dimension E3 (profiled rail systems) 20 mm
Dimension E3 tolerance ± 0.01
Dimension F H7 5 mm
Dimension F H7 thread depth 6.5 mm
Dimension F H7 thread depth (text) deep
Dimension F H7 with thread depth 5 mm ‒ 6.5 mm deep
Dimension F1 46 mm
Dimension F1 tolerance ± 0.01
Dimension F2 42 mm
Dimension F2 tolerance ± 0.01
Dimension G1 9.5 mm
Dimension G2 5.2 mm
Dimension G3 7.3 mm
Dimension G4 2.5 mm
Dimension G5 4.8 mm
Dimension H1 (profiled rail systems) 6
Dimension H2 (profiled rail systems) 12 mm
Dimension H3 3.5 mm
Dimension H4 7.7 mm
Dimension H5 20 mm
Dimension H6 12.5 mm
Dimension H8 3 mm
Funkce
  • Fastening of attachments (with sliding blocks)
  • Lubrication of the ball rail system and the ball screw assembly possible via the connection plate
