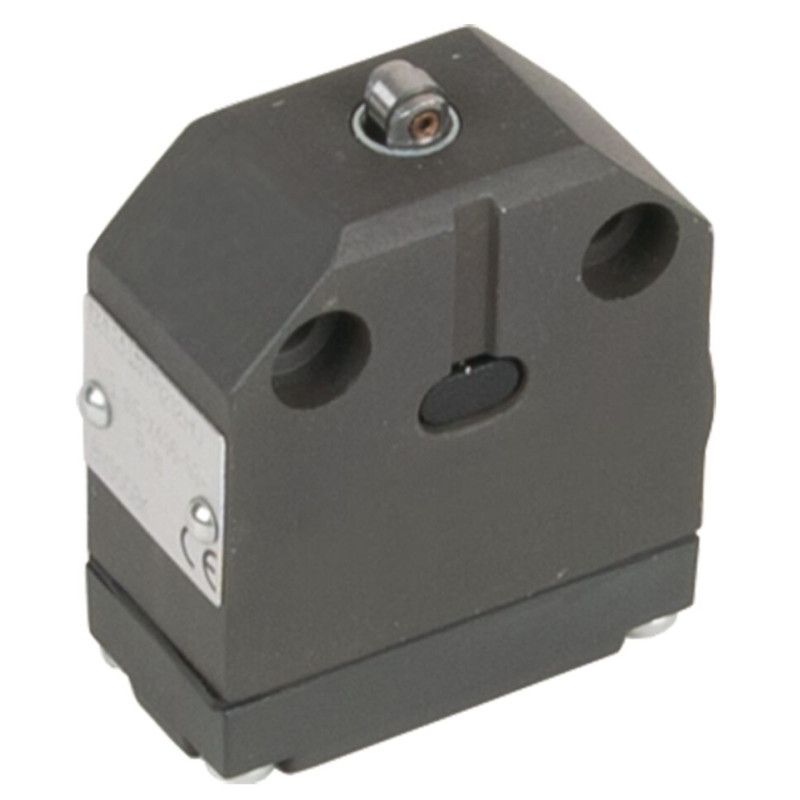

R345304016
BNS 819-X496-99-R-11

R345304016
  • Dostupnost: na dotaz
  • Váha: 0.07 KG
  • Číslo dílu: R345304016
  • Vyrobce: Bosch Rexroth

Cena:

remove add

Minimální množství pro objednání tohoto produktu je 0.

R345304016
Fyzická velikost a hmotnost
Net weight 73.2 g
Další vlastnosti
Electrical accessories for linear axes Mechanical switch
Use Limit switch
Attachments without
Connection type Screw connection, without line
Switching function version Single-pole changeover/(NC: C+NC, NO: C+NO)
Permissible ambient temperature (min. ... max.) -5 °C ... +85 °C
B10d value 5x106 (wet area); 10x106 (dependent on current load (dry area))
Function indicator no
Functional principle mechanical, roller
Compatible CKK, CKR, MKK/MKR-065/080/110/145/165, MLR-080/110, OBB, SGK, SOK, TKK
Load current ≤ 5
Max. permissible approach speed 1 m/s
Option number 65/75
Protection class IP67
CAD (2)
File R345304016.igs (ALL)
File R345304016.stp (ALL)
Manual (1)
PDF Safety instructions for linear axes and electromechanical cylinders (ALL)
