| Electrical accessories for linear axes |

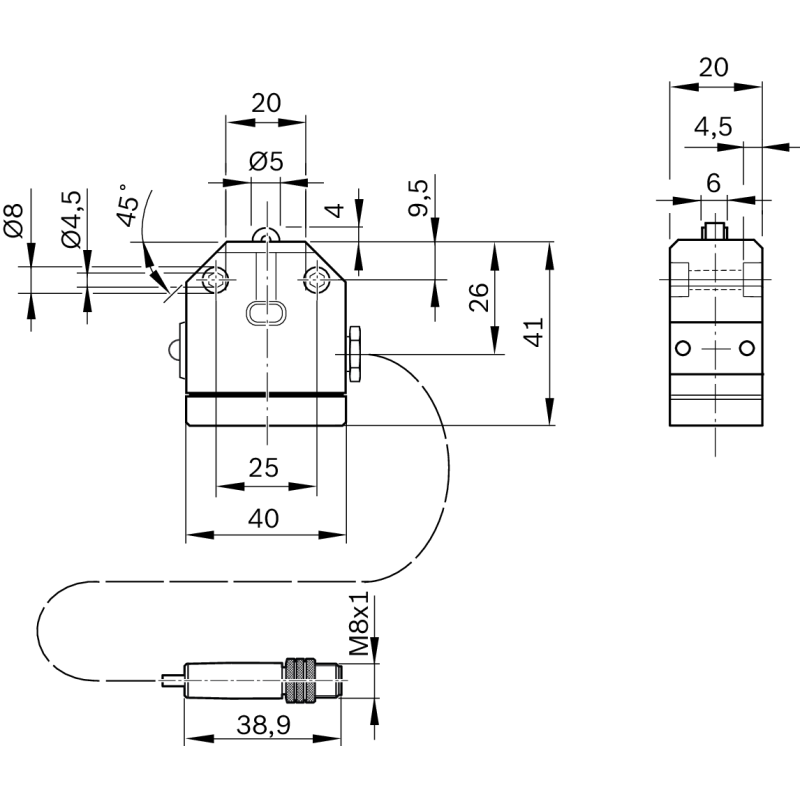

Mechanical switch with M8x1 connector
|
| Use |
Reference switch
|
| Connection type |
Cable 0.2 m and connector M8 x 1, 3-pin with knurled screw
|
| Switching function version |
NPN/NO
|
| Permissible ambient temperature (min. ... max.) |
-5 °C ... +70 °C
|
| B10d value |
5x106 (wet area); 10x106 (dependent on current load (dry area))
|
| Operating voltage (min. … max.) |
10 V DC ... 30 V DC
|
| Dynamic bending radius |
12
mm |
| Static bending radius |
12
mm |
| Bending cycles |
‒
|
| Functional principle |
mechanical, roller
|
| Bending radius for flexible installation footnote |
Technical data only for the cast-on connection line at the mechanical switch. The available extension cables offer even better performance, e.g. when using a cable drag chain.
|
| Footnote bending radius, static |
Technical data only for the cast-on connection line at the mechanical switch. The available extension cables offer even better performance, e.g. when using a cable drag chain.
|
| Bending cycles footnote |
Technical data only for the cast-on connection line at the mechanical switch. The available extension cables offer even better performance, e.g. when using a cable drag chain.
|
| Footnote cable cross-section |
Technical data only for the cast-on connection line at the mechanical switch. The available extension cables offer even better performance, e.g. when using a cable drag chain.
|
| Suitable for drag chains footnote |
Technical data only for the cast-on connection line at the mechanical switch. The available extension cables offer even better performance, e.g. when using a cable drag chain.
|
| Weld spark-resistant footnote |
Technical data only for the cast-on connection line at the mechanical switch. The available extension cables offer even better performance, e.g. when using a cable drag chain.
|
| Torsion-resistant footnote |
Technical data only for the cast-on connection line at the mechanical switch. The available extension cables offer even better performance, e.g. when using a cable drag chain.
|
| Compatible |
CKK, CKR, MKK/MKR-065/080/110/145/165, MLR-080/110, OBB, TKL
|
| Short-circuit protection |
yes
|
| Load current |
≤ 0.2
|
| Max. permissible approach speed |
1
m/s |
| Switching frequency |
3300
Hz |
| Suitable for drag chains |
No
|
| Protection class |
IP65
|
| Weld spark-resistant |
yes
|
| Torsion-resistant |
yes
|
| Reverse polarity protection |
yes
|
