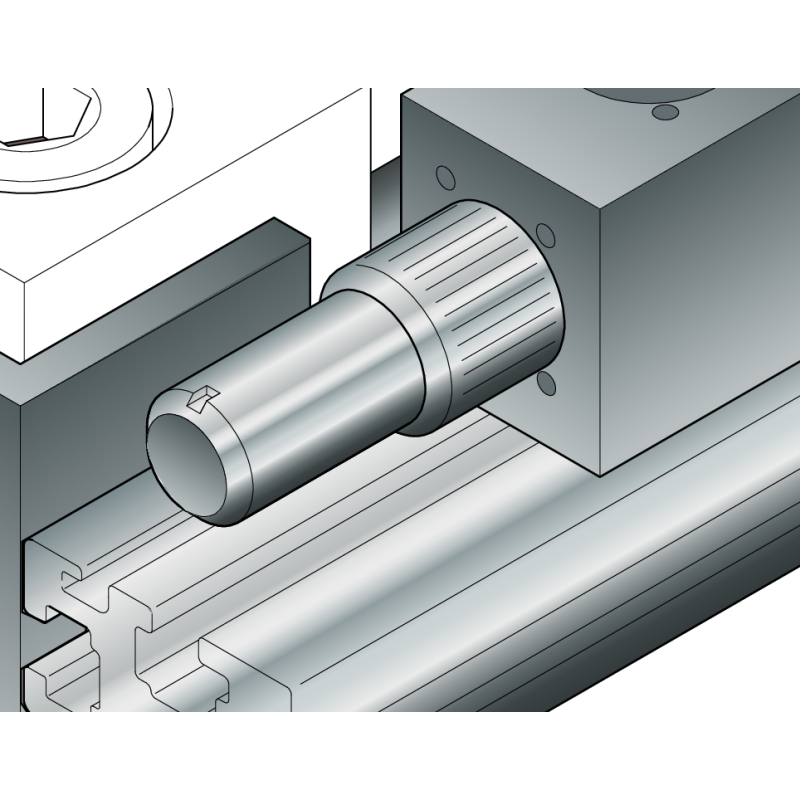

R141400061
BG

R141400061
  • Dostupnost: na dotaz
  • Váha: 0.22 KG
  • Číslo dílu: R141400061
  • Vyrobce: Bosch Rexroth

Cena:

remove add

Minimální množství pro objednání tohoto produktu je 0.

R141400061
Fyzická velikost a hmotnost
Net weight 0.218 kg
Diameter soldered connection flange socket ≤ 1
Diameter soldered connection connector ≤ 1
Cable diameter D (min. … max.) 10 mm ... 14 mm
Další vlastnosti
Electrical accessories for linear axes Socket and connector
Use Socket and connector
Flange socket connection type Soldered connection
Connection type of motor connector Soldered connection
Pin number 16
Permissible ambient temperature (min. ... max.) -20 °C ... +125 °C
Operating voltage (min. … max.) 10 V DC ... 30 V DC
Designation for SGK/SOK
Housing cable bushing 1 seal with bore 2x5.5 mm, 1x3.5 mm 1 adaptable seal, max. 14 mm diameter
Cable bushing, connector Bolting with pull relief
Maximum operating current per contact 8 A
Option number 17
Plug cycles 50
