| Connection type 1 |

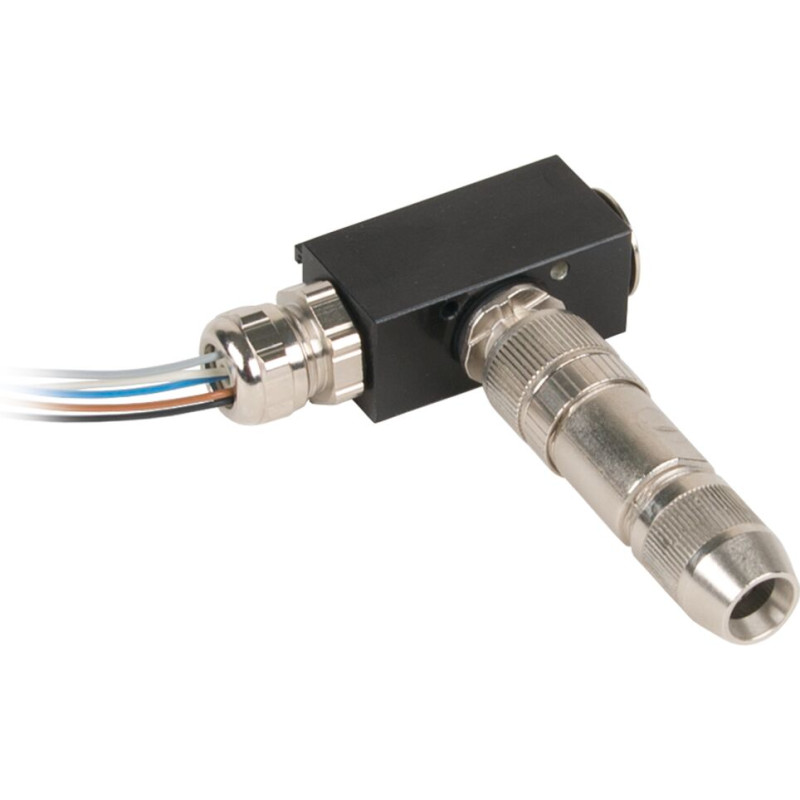

Male connector, straight, M12x1, 5-pin, spring-cage connection
|
| Electrical accessories for linear axes |
Socket and connector
|
| Use |
Socket and connector
|
| Version |
angled, for suspension in the lateral slot of the linear motion system
|
| Connection type 2 |
Coupling / flange socket M12x1, 5-pin, with 0.5 m cable
|
| Connection cross-section (min. … max.) |
0.14 mm² ... 0.5 mm²
|
| Certifications and approvals |
‒
|
| Permissible ambient temperature (min. ... max.) |
-25 °C ... +85 °C
|
| Operating voltage (min. … max.) |
10 V DC ... 30 V DC
|
| Designation |
for CKK/CKR-070, MKK/MKR-040
|
| Housing cable bushing |
Cable gland M16x1.5 with seal (bore 3x3.5 mm) incl. cap and blind plug
|
| Cable bushing, connector |
Bolting with pull relief
|
| Maximum operating current per contact |
4
A |
| Protection class |
‒
|
