| Connection type 1 |
Male connector, straight, 16-pin, soldered connection
|
| Electrical accessories for linear axes |
Socket and connector
|
| Use |
Socket and connector
|
| Version |

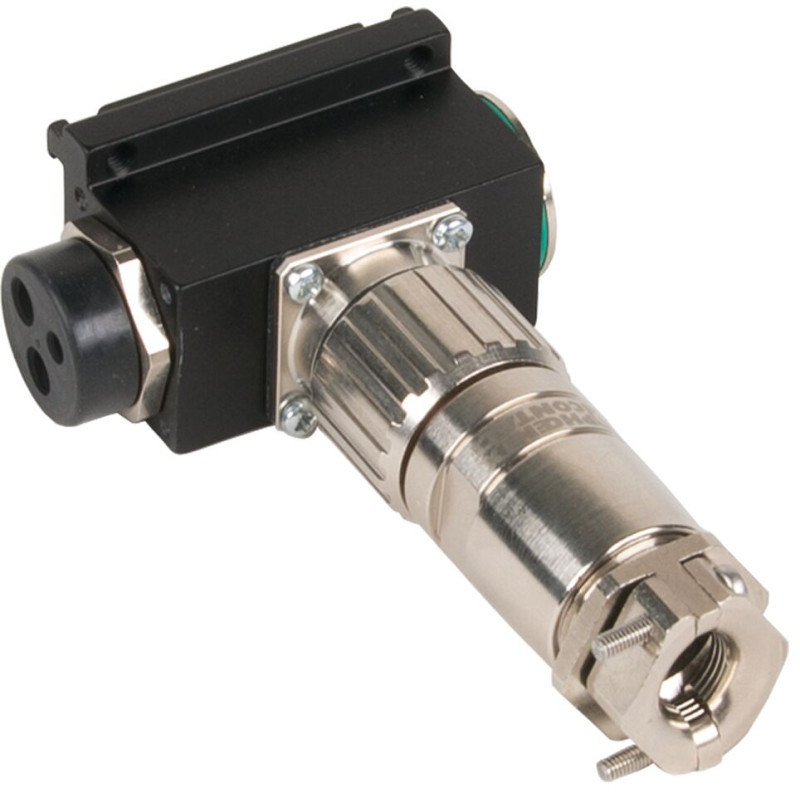

angled, for suspension in the lateral slot of the linear motion system
|
| Connection type 2 |
Coupling / flange socket, 16-pin, soldered connection
|
| Connection cross-section (min. … max.) |
0.14 mm² ... 1 mm²
|
| Certifications and approvals |
‒
|
| Permissible ambient temperature (min. ... max.) |
-20 °C ... +125 °C
|
| Designation |
for CKK/CKR-090/110/145/200, MKx-065/080/110/145/165, MLR-080/110, OBB, AGK, TKK
|
| Housing cable bushing |
1 seal with bore 2x5.5 mm, 1x3.5 mm 1 adaptable seal, max. 14 mm diameter incl. cap and dummy plug
|
| Cable bushing, connector |
Bolting with pull relief
|
| Maximum operating current per contact |
8
A |
| Option number |
17/7
|
| Protection class |
‒
|
