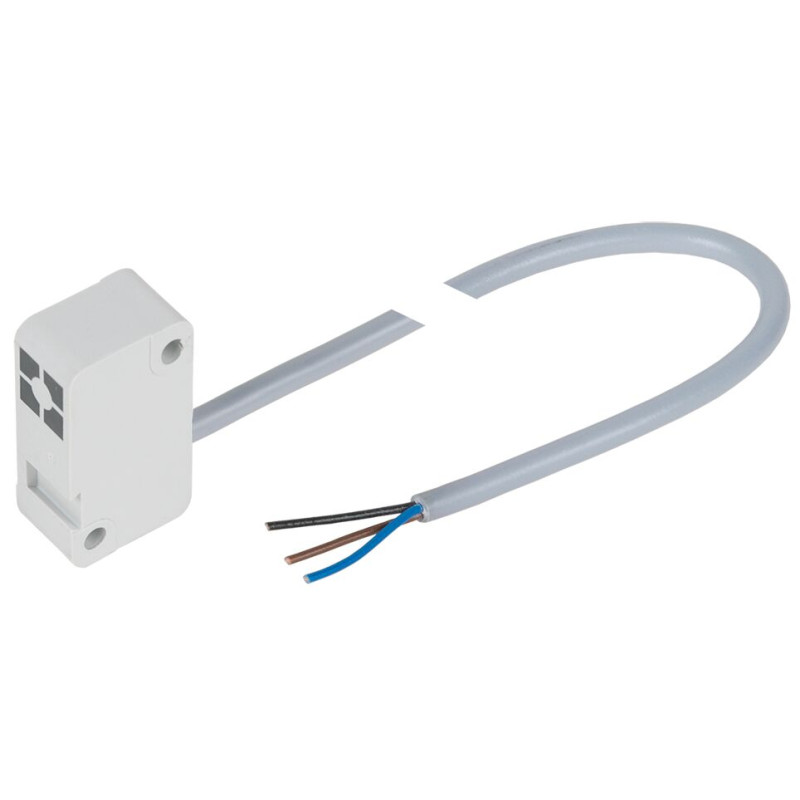

| Electrical accessories for linear axes |
Inductive sensors
|
| Use |
Limit switch
|
| Connection type |
Line 3 m, 3-pin, free line end
|
| Switching function version |
PNP/NC
|
| Cable cross-section |
3 x 0.14 mm²
|
| Permissible ambient temperature (min. ... max.) |
-40 °C ... +70 °C
|
| Operating voltage (min. … max.) |
10 V DC ... 30 V DC
|
| Dynamic bending radius |
12
mm |
| Static bending radius |
12
mm |
| Bending cycles |
‒
|
| Function indicator |
yes
|
| Functional principle |
inductive
|
| Bending radius for flexible installation footnote |
Technical data only for the cast-on connection line at the proximity sensor. Even more performance, e.g. extension cables are offered for use in an energy chain.
|
| Footnote bending radius, static |
Technical data only for the cast-on connection line at the proximity sensor. The available extension cables offer even better performance, e.g. when using a cable drag chain.
|
| Bending cycles footnote |
Technical data only for the cast-on connection line at the proximity sensor. Even more performance, e.g. extension cables are offered for use in an energy chain.
|
| Footnote cable cross-section |
Technical data only for the cast-on connection line at the proximity sensor. Even more performance, e.g. extension cables are offered for use in an energy chain.
|
| Suitable for drag chains footnote |
Technical data only for the cast-on connection line at the proximity sensor. Even more performance, e.g. extension cables are offered for use in an energy chain.
|
| Weld spark-resistant footnote |
Technical data only for the cast-on connection line at the proximity sensor. Even more performance, e.g. extension cables are offered for use in an energy chain.
|
| Torsion-resistant footnote |
Technical data only for the cast-on connection line at the proximity sensor. Even more performance, e.g. extension cables are offered for use in an energy chain.
|
| Compatible |
CKK, CKR, MKK, MKR, MLR, OBB, SGK, SOK, TKK
|
| Short-circuit protection |
no
|
| Load current |
≤ 200
|
| Mean time to dangerous failure (MTTFd) |
830
|
| Option number |
11/61
|
| Switching frequency |
2500
Hz |
| Suitable for drag chains |
No
|
| Protection class |
IP65
|
| Weld spark-resistant |
yes
|
| Torsion-resistant |
yes
|
| Reverse polarity protection |
no
|
