| Connection type 1 |
4x female connectors, straight, M8x1, 3-pin, self-locking screw thread
|
| Electrical accessories for linear axes |

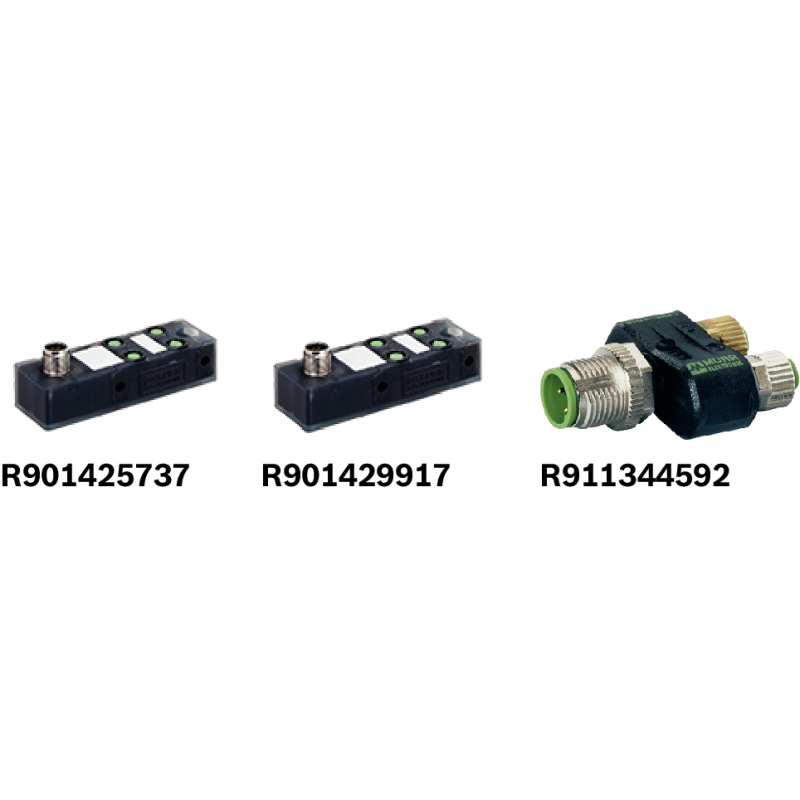

Passive distributor
|
| Use |
Passive distributor
|
| Version |
straight, for 1 - 4 sensors
|
| Connection type 2 |
Straight connector, M12x1, 8-pin, IDC, self-locking screw thread
|
| Permissible ambient temperature (min. ... max.) |
-20 °C ... +70 °C
|
| Operating voltage (min. … max.) |
24 V
|
| Operating voltage indicator |
yes
|
| Function indicator |
yes
|
| Note on protection class |
inserted & screwed down
|
| Maximum operating current per contact |
2
A |
| Protection class |
IP67
|
