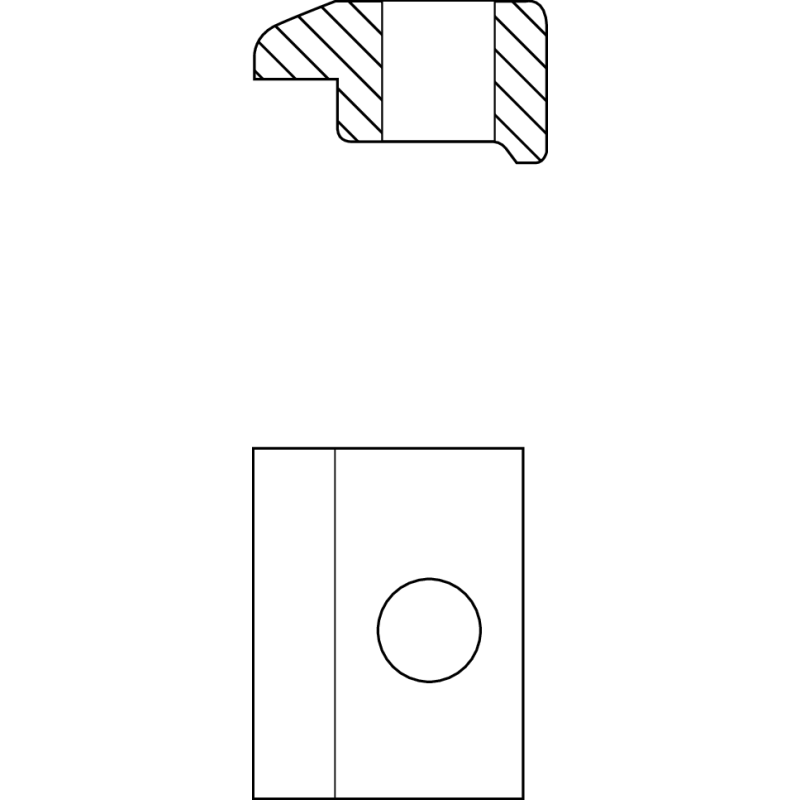

R117519201
62 MM

R117519201
  • Dostupnost: na dotaz
  • Váha: 0.03 KG
  • Číslo dílu: R117519201
  • Vyrobce: Bosch Rexroth

Cena:

remove add

Minimální množství pro objednání tohoto produktu je 0.

R117519201
Fyzická velikost a hmotnost
Net weight 27.18 g
Outer diameter D 11.5 mm
Další vlastnosti
Mechanical accessories for linear axes Clamping fixtures
Nominal size MKR-080
Type 2
Number of bores N 2
Tightening torque of fastening screws 9.5 Nm
Tightening torque of fixing screws footnote in accordance with strength class 8.8
Dimension A (profiled rail systems) 62 mm
Dimension B (profiled rail systems) 11 mm
Dimension C 40
Dimension D 11.5 mm
Dimension F 19.3 mm
Thread Dimension M6
Dimension H 7.5 mm
Footnote Dimension for thread Countersink ISO 4762
Manual (1)
PDF Safety instructions for linear axes and electromechanical cylinders (ALL)
