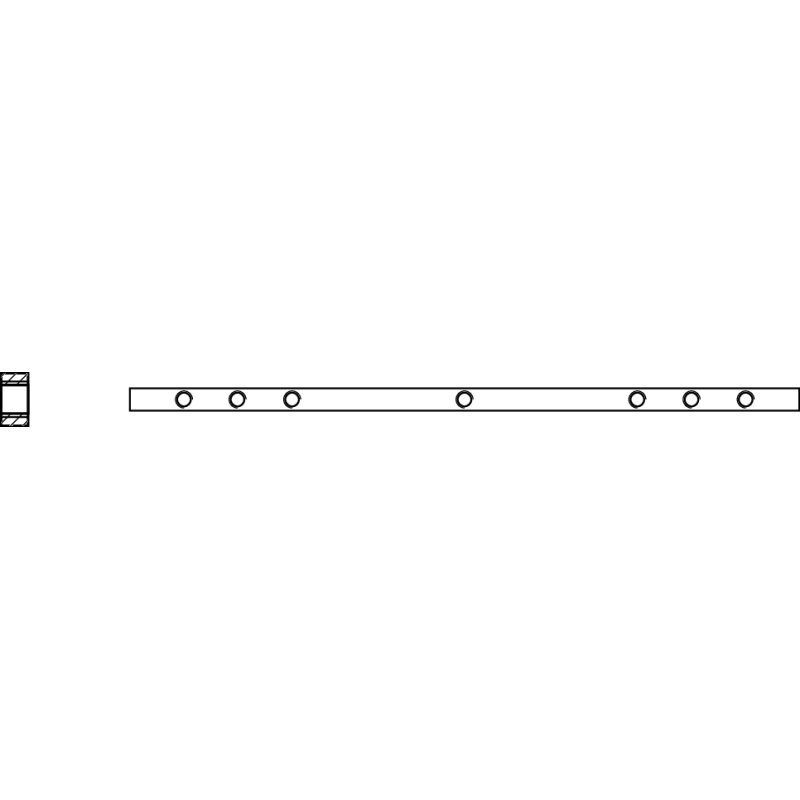

R039171004
.

R039171004
  • Dostupnost: na dotaz
  • Váha: 0.39 KG
  • Číslo dílu: R039171004
  • Vyrobce: Bosch Rexroth

Cena:

remove add

Minimální množství pro objednání tohoto produktu je 0.

R039171004
Fyzická velikost a hmotnost
Net weight 0.39 kg
Další vlastnosti
Mechanical accessories for linear axes Threaded strips
Nominal size 165
Tightening torque of fastening screws 23 Nm
Tightening torque of fixing screws footnote at friction factor 0.125, in accordance with strength class 8.8
Product information Profile as per DIN 508
Thread Dimension M8
Funkce
  • Ocel, mořená
  • Všechny závitové lišty lze upevnit pro svislou montážní polohu
CAD (2)
File R039171004.stp (ALL)
File R039171004.igs (ALL)
Catalog (1)
PDF Linear modules MKK, MKR, MLR (EN)
Manual (2)
PDF Safety instructions for linear axes and electromechanical cylinders (ALL)
PDF R039171004 (EN)
