R039171001
.

R039171001
  • Dostupnost: na dotaz
  • Váha: 0.19 KG
  • Číslo dílu: R039171001
  • Vyrobce: Bosch Rexroth

Cena:

remove add

Minimální množství pro objednání tohoto produktu je 0.

R039171001
Fyzická velikost a hmotnost
Net weight 0.193 kg
Další vlastnosti

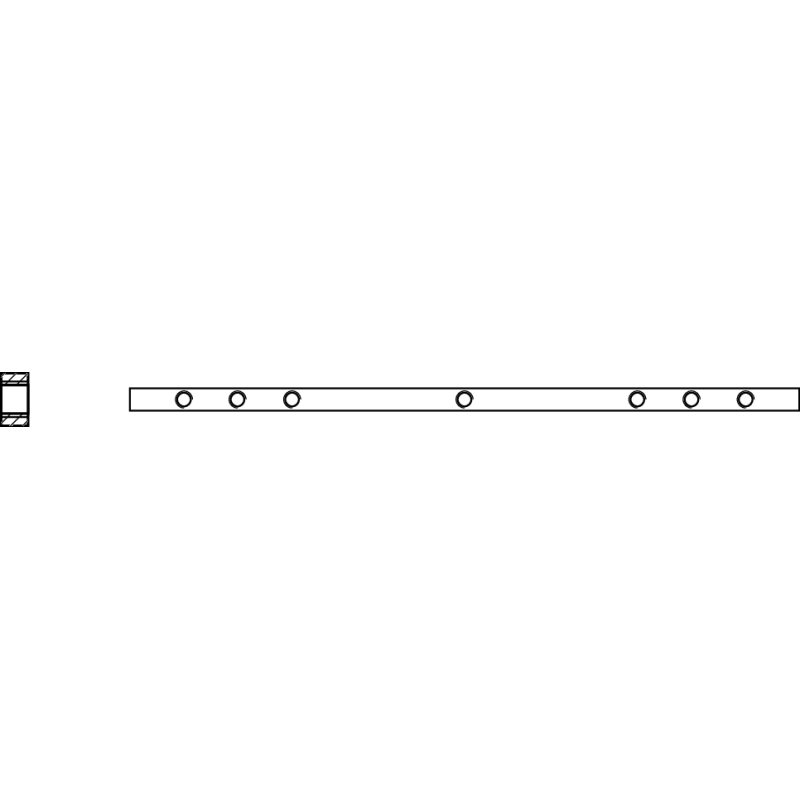

Mechanical accessories for linear axes Threaded strips
Nominal size 110
Tightening torque of fastening screws 9.5 Nm
Tightening torque of fixing screws footnote at friction factor 0.125, in accordance with strength class 8.8
Product information Profile as per DIN 508
Thread Dimension M6
Funkce
  • Ocel, mořená
  • Všechny závitové lišty lze upevnit pro svislou montážní polohu
CAD (2)
File R039171001.igs (ALL)
File R039171001.stp (ALL)
Catalog (1)
PDF Linear modules MKK, MKR, MLR (EN)
Manual (2)
PDF Safety instructions for linear axes and electromechanical cylinders (ALL)
PDF R039171001 (EN)
