Fyzická velikost a hmotnost
| Net weight |
2.02
kg |
| Operating pressure, max. |
315
bar |
| Max. flow |
330
l/min |
| Nominal flow |
330
l/min |
Další vlastnosti
| Product family classification |

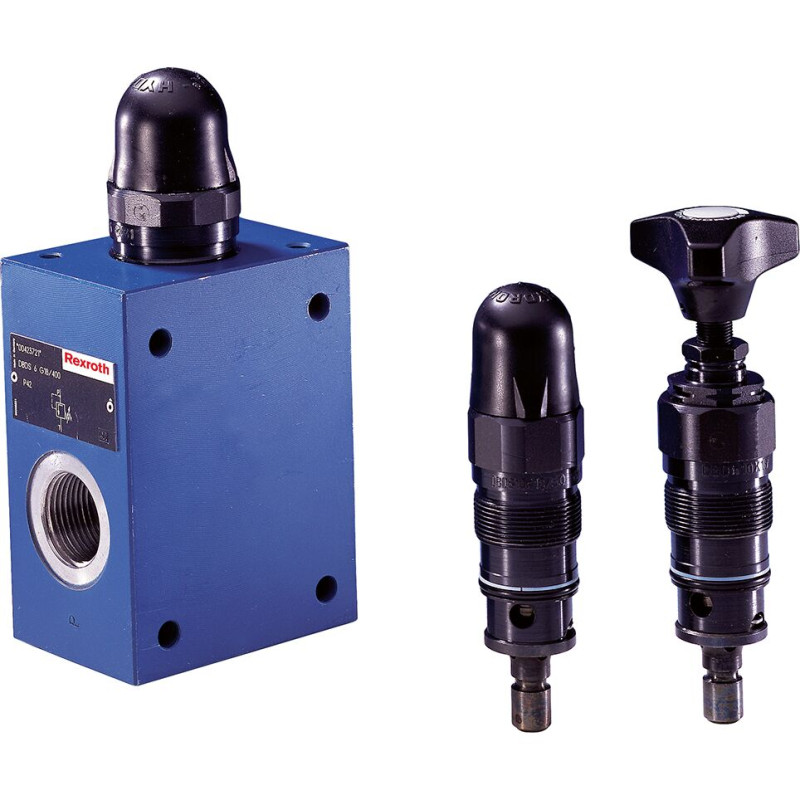

Pressure relief valve, direct operated
|
| Connection diagram |
Mounting cavity DBD NG30
|
| Product family type |
DBD.K
|
| Product family |
DBD.30K (S/H/A)
|
| Ports number |
2
|
| Spool Poppet |
Poppet type
|
| Type of connection |
Screw-in cartridge valve
|
| Direct - Pilot |
Direct acting
|
| Cavity |
M60x2
|
| Type of actuation |
with manual actuation
|
| Adjustment options |
Bushing with hexagon and protective cap
|
| Ports |
G 1 1/2
|
| Sealing material |
NBR
|
| Hydraulic fluid |
HL,HLP,HLPD,HVLP,HVLPD,HFC
|
| Seals |
NBR
|
| Product family |
Relief
|
| Product type |
DBD.K
|
Popis
Průmyslové hydraulické ventily s vysokým výkonem. Spolehlivé omezení tlaku na nastavenou hodnotu
Funkce
- Maximální pracovní tlak 315 bar (4 568 psi)
- Maximální objemový průtok 330 l/min (86,8 gpm)
- Otvor k našroubování M60x2
- Vestavné ventily
