Fyzická velikost a hmotnost
| Max. flow |
250
l/min |
| Net weight |
913.901
g |
| Nominal flow |
250
l/min |
| Operating pressure, max. |
400
bar |
Další vlastnosti
| Adjustment options |
Bushing with hexagon and protective cap
|
| Cavity |
M45x1,5
|
| Connection diagram |
Mounting cavity DBD NG20
|
| Direct - Pilot |
Direct acting
|
| Hydraulic fluid |
HL,HLP,HLPD,HVLP,HVLPD,HETG,HEES,HFDU,HFDR
|
| Ports |
G 1
|
| Ports number |
2
|
| Product family |
DBD.20K (S/H/A)
|
| Product family |
Relief
|
| Product family classification |
Pressure relief valve, direct operated
|
| Product family type |
DBD.K
|
| Product type |
DBD.K
|
| Sealing material |
FKM
|
| Seals |
FKM
|
| Spool Poppet |
Poppet type
|
| Type of actuation |
with manual actuation
|
| Type of connection |
Screw-in cartridge valve
|

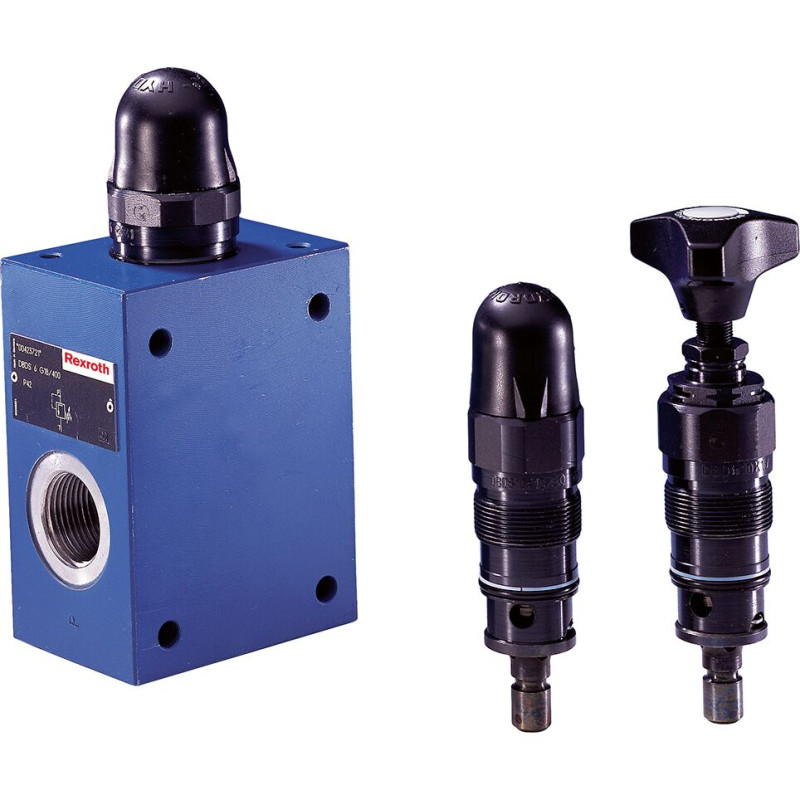

Popis
Průmyslové hydraulické ventily s vysokým výkonem. Spolehlivé omezení tlaku na nastavenou hodnotu
Funkce
- Maximální pracovní tlak 400 bar (5 800 psi)
- Maximální objemový průtok 250 l/min (66 gpm)
- Otvor k našroubování M45x1,5
- Vestavné ventily
